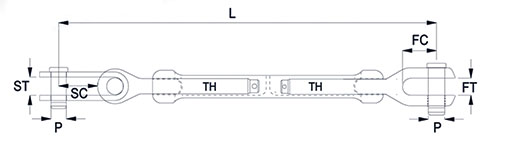

Turnbuckle GT Body with Toggle & Fork

Product Code	Thread (″ unf)	P (mm)	ST (mm)	SC (mm)	FC (mm)	FT (mm)	Min L (mm)	Max L (mm)
GTFT03	1/4	6.0	7.7	14.0	13.0	6.3	157.5	229.5
GTFT04	5/16	8.0	9.0	18.0	16.0	8.0	192.0	272.0
GTFT05	3/8	9.5	10.3	20.0	19.0	10.0	231.5	335.5
GTFT06	7/16	11.0	14.0	25.0	22.0	11.0	260.5	372.5
GTFT07	1/2	12.7	15.0	27.0	25.0	12.7	318.0	458.0
GTFT08	5/8	14.0	19.0	38.0	28.0	14.0	368.5	518.5
GTFT10	5/8	16.0	19.0	36.0	32.0	16.0	380.5	530.5
GTFT12	3/4	19.0	22.0	44.0	38.0	19.0	443.5	623.5
GTFT14	7/8	22.0	24.0	53.0	45.0	22.2	512.0	722.0
GTFT16	1	25.0	28.0	63.0	50.0	25.4	583.5	823.5
GTFT19	1 1/8	28.0	32.0	67.0	58.0	28.6	661.0	931.0
GTFT22	1 1/4	32.0	36.0	83.0	64.0	32.0	730.5	1030.5
GTFT26	1 3/8	35.0	38.0	97.0	70.0	35.0	801.5	1121.5
