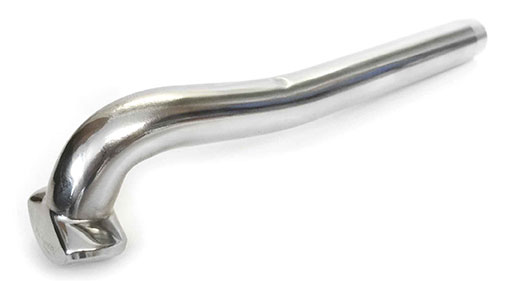

Swage Tee Mast Terminals

Swage Tee Mast Termainal Swage Tee Mast Termainal Technical Drawing
Product Code Wire (mm) T (mm) B (mm) W (mm) SD (mm) HW (mm)
STT-03 3 6.3 39 3.4 6.3 16.6
STT-04 4 9 45 4.4 7.5 17.5
STT-05 5 11.1 52 5.4 9.1 20
STT-06 6 14.3 64 6.5 12.5 28
STT-07 7 14.3 70 7.5 14.3 28
STT-08 8 17.8 80 8.5 16.1 32
STT-10 10 17.8 100 10.6 17.8 32

Product Features

316 T-terminals (also known as tee terminals) from Petersen are exclusively manufactured at the Petersen factory in England. Forged from low carbon stainless steel 316L (1.4404), every Petersen swage t-terminal is incredibly strong and light. All Petersen t-terminals are compatible with Gibb / Navtec 740 series backing plates and are a direct replacement for Noresman Navtec 741 t-terminals. Petersen has been a manufacturer of A4 stainless terminals for many years and during that time has built an industry leading quality system with full material traceability. Petersen t-terminals can be used with many different wire rope constructions and spiral strand. As a manufacturer of swage t-terminals Petersen can offer you an affordable, customised t-terminal to suit your rigging project.
