Wire Rigging Insulators

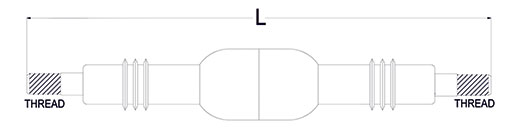

The product codes for rigging insulators are made up by suffixing “RI” with the relevant fittings followed by the wire size, for example, the above diagram would be coded RICC06. All insulators can be swaged using most types of swaging machines. WireTeknik machines require a special pulling tool, see the table below for the correct puller code.

Larger sizes avaliable please contact us for details
Wire Size (mm)	Pin Size (mm)	Hole Size (mm)	C-L (mm)	E-L (mm)	S-L (mm)	F-L (mm)	T-L (mm)	Puller Code
5	11	11.1	106	107	101	121	147	RIP7/16
6	11	11.1	110	107	101	121	147	RIP7/16
7	12.7	12.7	131	129	120	142	169	RIP1/2
8	14	14.28	153	151	140	164	212	RIP5/8
10	16	16.2	159	155	142	176	212	RIP5/8
12	19	19.05	192	180	168	207	258	RIP3/4
14	22	22.2	222	207	196	238	297	RIP7/8
16	25	25.4	258	237	226	271	337	RIP1

Larger sizes avaliable please contact us for details
C-L	E-L	S-L	F-L	T-L
Code: C	Code: E	Code: S	Code: F	Code: L

Compression End	Eye End	Swage Stud End	Fork End	Toggle End
